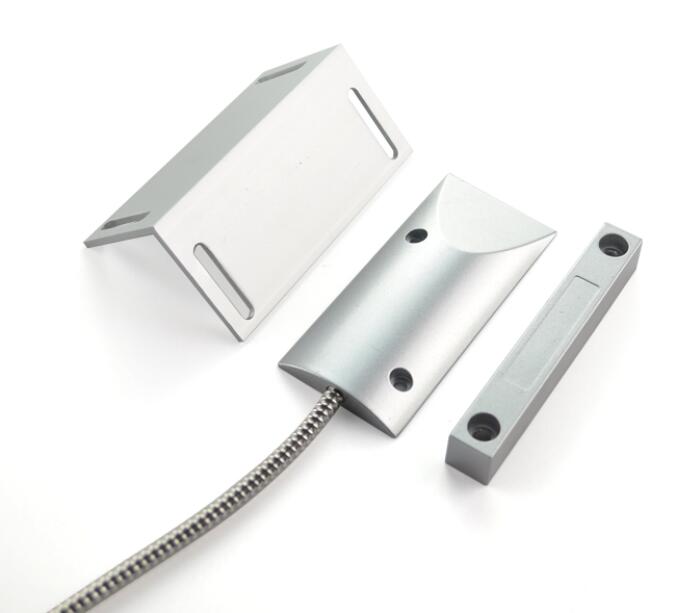

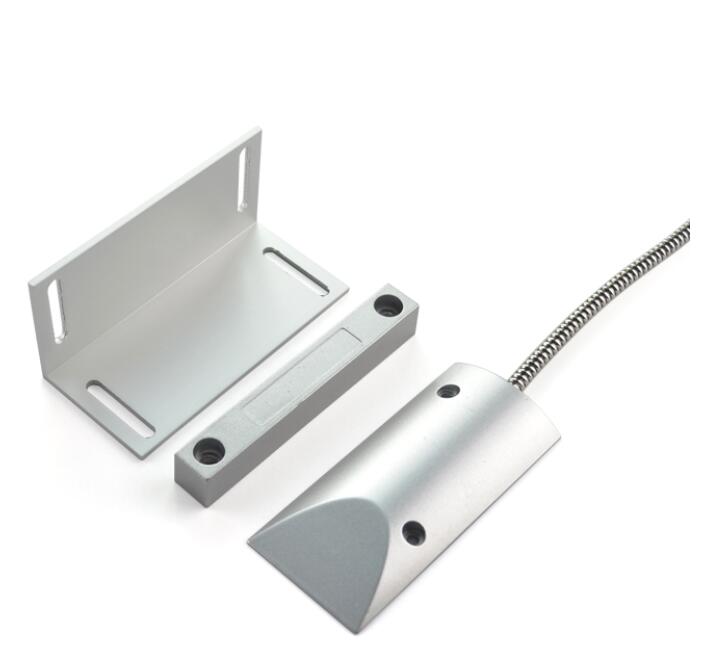

Wired metal rolling door magnetic detector/sensor

Wired metal rolling door magnetic detector/sensor

1. Reed switches use Japan brand of OKI,stable performance,load Life up to millions times.
2. Advanced electroplating coining process, the case is made of high quality thick zinc, which is beautiful, stable and secure.
3. Wire protected by stainless steel threaded pipe , wear-resistant, durable, waterproof. Protect cable from aging, with 550mm length cable,the cable also with 380mm stainless steel protected pipe.
4. Adopt imported PC plastic sealed, waterproof and durable, no electric leakage.
5. With sealed design, enclosed magnet, high adsorption power, which makes it use more stable.
6. Functional and decorative integration,be fit for a variety of high-quality sites, fine wire drawing,good oxidation resistance,which can be used in harsh environments.
7. Applies to shutter doors,wood-framed doors and cabinet doors.





Specification for rolling door detector
Model HS-114D
Usage Alarm/Access control system
Case material Zinc Alloy
Applications Roller Shutter Door
Induction distance 60-70 mm
MaxCur./Vol./Power/Init.Ress

0.5A/100V/10W/200mΩ

Signal output NC ; ( NO Type or NC /NO Type can be customized )
Mounting Surface mounted
Connection way 550mm(with 380mm stainless steel protecting tube)
Packing 1 set/bag

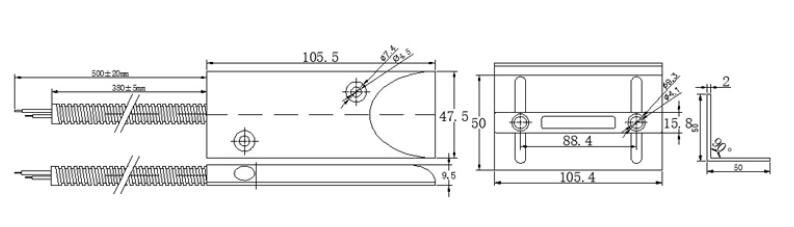

Size

Sensor part:105* 47.5* 9.5mm
Magnet part: 88*20*20mm
L stand:50*50mm
