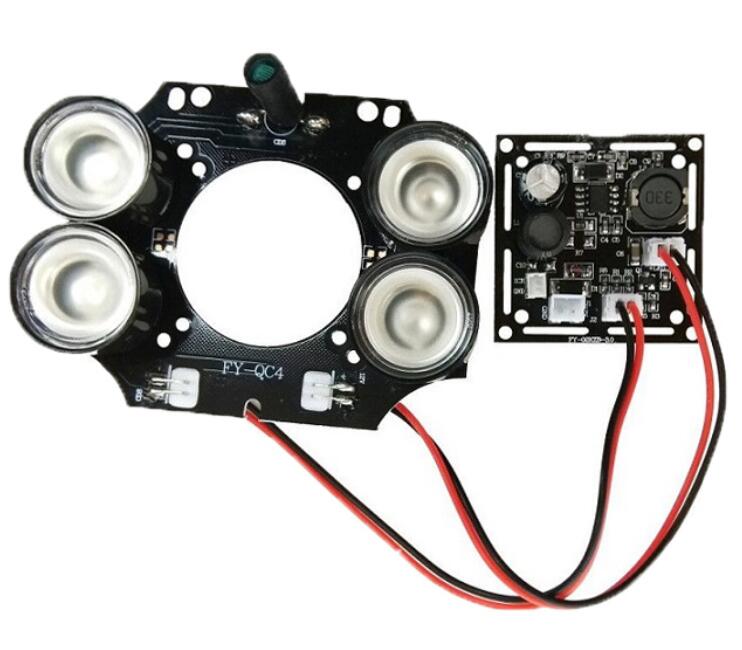

CCTV camera parts IR array board with 4Pcs high power 42 mil epistar led

Product specification	4pcs ir led board
Shine the light	infrared led light
Power	42mil(more cheaper)
Whether the waterproof	NO
Voltage	DC12V
Electric current	720mA(10mil)
Product structure	cctv PCB board
The light Angle	30°-45°-60°-90°
Lamp cup angle	30°-45°-60°-90°
Fix lens	12mm/8mm/6mm/4mm
Effective illumination range	8-40meters
Wavelength range	850nm (42 mil epistar led array board cctv)
Technical parameters	4pcs 850nm ir led 42mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
