Home > Product > CCTV camera parts IR infrared array led board with 18 pcs SMD led
  • CCTV camera parts IR infrared array led board with 18 pcs SMD led

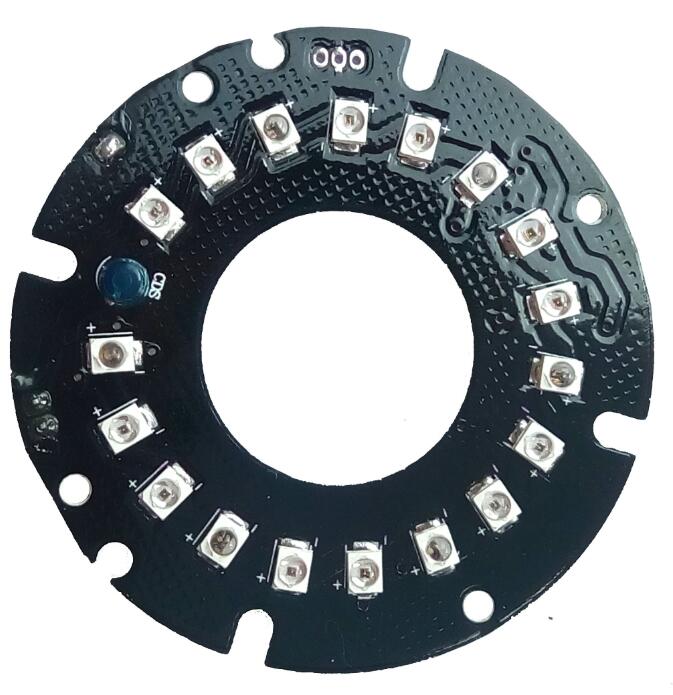

CCTV camera parts IR infrared array led board with 18 pcs SMD led

CCTV camera parts IR infrared array led board with 18 pcs SMD led

Product specification 10mil & 14mil
Shine the light infrared
Power 10mil
Whether the waterproof NO
Voltage DC12V
Electric current 290-300mA
Product structure PCB plate
The light Angle 30°-45°-60°-90°
Fix lens 12mm/8mm/6mm/4mm
Effective illumination range   5-18 meters
Wavelength range 850nM
Technical parameters 18 leds,14mil,PCB plate, with dome lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
